doi: 10.56294/ai2024132
ORIGINAL
Prototyping and Validation of a Low-Code Platform for Dynamic Code Generation in Microservices
Prototipo y Validación de una Plataforma Low-Code para Microservicios con Generación Dinámica de Código
Tomás Darquier1, Pablo Alejandro Virgolini1
1Universidad Siglo 21, Licenciatura en Informática, S.C de Bariloche. Argentina.
Cite as: Darquier T, Virgolini PA. Prototyping and Validation of a Low-Code Platform for Dynamic Code Generation in Microservices. EthAIca. 2024; 3:132. https://doi.org/10.56294/ai2024132
Submitted: 16-08-2023 Revised: 04-01-2024 Accepted: 24-05-2024 Published: 25-05-2024
Editor: PhD.
Rubén González Vallejo
ABSTRACT
Introduction: the project addressed the issue of developing microservice architectures, a practice increasingly adopted in the software industry due to its benefits in terms of scalability and maintenance. However, its implementation involves a high degree of technical complexity, especially in the design, integration, and deployment stages. Given this scenario, the development of a low-code web platform was proposed to facilitate the visual design of microservices, reducing development times and technical barriers.
Method: to carry out the proposal, the agile Scrum methodology was applied, allowing for iterative and incremental construction of the system. The platform was developed with technologies such as Java and Spring Framework in the backend, HTML, CSS, JavaScript, and Thymeleaf in the frontend, and PostgreSQL as the database. Apache Kafka was incorporated for asynchronous communication, MinIO for storage, and semantic technologies such as RDF and SPARQL managed by Apache Jena. Code generation was performed with Apache Velocity, based on predefined templates.
Results: the system allowed users to design microservice architectures using a visual interface (canvas), configure specific properties, and automatically generate source code. In addition, it incorporated validations that ensured the consistency of the designs and offered mechanisms for authentication and export of the generated code.
Conclusions: the platform achieved its goal of simplifying microservice development through a low-code approach. Its usefulness as a support tool for developers was validated, reducing complexity and time spent on repetitive technical tasks.
Keywords: Microservices; Low-Code; Code Generation; Distributed Architecture; Agile Development.
RESUMEN
Introducción: el proyecto abordó la problemática del desarrollo de arquitecturas de microservicios, una práctica cada vez más adoptada en la industria del software por sus beneficios en escalabilidad y mantenimiento. Sin embargo, su implementación implica una alta complejidad técnica, especialmente en las etapas de diseño, integración y despliegue. Frente a este escenario, se planteó el desarrollo de una plataforma web Low-code que facilitara el diseño visual de microservicios, reduciendo tiempos de desarrollo y barreras técnicas.
Método: para llevar a cabo la propuesta, se aplicó la metodología ágil Scrum, permitiendo una construcción iterativa e incremental del sistema. La plataforma se desarrolló con tecnologías como Java y Spring Framework en el backend, HTML, CSS, JavaScript y Thymeleaf en el frontend, y PostgreSQL como base de datos. Se incorporaron Apache Kafka para comunicación asincrónica, MinIO para almacenamiento, y tecnologías semánticas como RDF y SPARQL gestionadas por Apache Jena. La generación de código se realizó con Apache Velocity, en base a plantillas predefinidas.
Resultados: el sistema permitió a los usuarios diseñar arquitecturas de microservicios mediante una interfaz visual (canvas), configurar propiedades específicas y generar código fuente automáticamente. Además, incorporó validaciones que aseguraron la consistencia de los diseños y ofreció mecanismos de autenticación y exportación del código generado.
Conclusiones: la plataforma logró cumplir su objetivo de simplificar el desarrollo de microservicios a través de un enfoque Low-code. Se validó su utilidad como herramienta de apoyo para desarrolladores, reduciendo la complejidad y el tiempo invertido en tareas técnicas repetitivas.
Palabras clave: Microservicios; Low-Code; Generación de Código; Arquitectura Distribuida; Desarrollo Ágil.
INTRODUCTION
The development of modern applications poses increasingly complex challenges, especially when distributed architectures such as microservices are adopted.(1,2,3,4) This approach, although highly beneficial in terms of scalability, modularity, and maintenance, introduces significant difficulties during the design, implementation, and integration of the various components.(5,6,7,8) Faced with this reality, this project proposed as a solution the design and implementation of a low-code platform aimed at facilitating the creation of microservice architectures in a visual, intuitive, and customizable way, targeting software developers in particular.(9,10,11)
With the aim of achieving a functional and flexible product, the agile **Scrum** methodology was adopted, which allowed for the incremental development of the system through iterations known as Sprints. This strategy facilitated the incorporation of continuous improvements and rapid adaptation to technical obstacles, technology changes, or design reorientations, without compromising the overall progress of the project.(12,13,14)
During its implementation, the system integrated a variety of technologies organized into different levels. For the **front-end**, HTML5, CSS, and JavaScript were used, complemented by Bootstrap and Thymeleaf, allowing for a smooth and adaptable user experience. On the **back end**, Java with Spring Framework was used to build a robust and secure foundation, with authentication via OAuth2 provided by Okta. Tools such as PostgreSQL for data management, Apache Kafka for asynchronous communication, and MinIO for storing generated code were also incorporated.(15,16,17)
One of the most innovative features of the system was the automatic generation of code based on user interaction with the canvas. This functionality was made possible by the use of semantic technologies such as RDF and SPARQL, managed by Apache Jena and powered by Apache Velocity for the creation of customizable files.(18,19,20)
Data collection for the design and validation of the project combined specialized academic sources and technical discussion forums on social networks such as Reddit, Twitter, and Medium. This fusion of theory and practice allowed for a better understanding of the problem and informed the technological decisions made.
In summary, the platform developed seeks to lower the technical barrier in the design of distributed systems, promoting the use of reusable and configurable components, all within a low-code visual environment capable of generating architectures ready for deployment with minimal manual intervention.
How can we facilitate the design, configuration, and integration of microservice architectures using a low-code platform that reduces technical complexity and development time without compromising the quality of the software generated?
Objective
To develop a low-code platform that allows developers to design, configure, and integrate microservice architectures in a visual and intuitive way, using reusable components, automating code generation, and optimizing development times with validations that ensure system quality.
METHOD
Methodological Design
Methodological Tools
During the development of this system, the guidelines established by the agile Scrum methodology were followed, a framework that facilitates collaboration between teams to deliver products in an iterative and incremental manner, allowing for rapid adaptation to changes and encouraging continuous improvement (Schwaber & Sutherland, 2010).
In this way, at the end of each Sprint, functional portions of code were obtained, even though the complete system was not developed, learning from each iteration and applying the knowledge in the next one. Thus, the product benefited from the aforementioned agile characteristics, even allowing for a change in technologies based on the knowledge obtained during the development process without any repercussions.
Development Tools
Multiple technologies were used in the development of the project, which will be explained and justified below, organized into four groups according to their specific activity: front-end tools, those intended for the back-end for basic logical authentication and exchange with the front-end embedded in the gateway, back-end technologies for automatic code generation, and finally, technologies used to facilitate system deployment and scalability.
The tools used in the development of the front-end include the now standard set of JavaScript, HTML5, and CSS, allowing for the creation of a complete visual appearance with high compatibility, as well as correct and adaptable communication logic with the back-end. In turn, these tools were enhanced with Bootstrap, which, with the help of its pre-designed components, alleviated the workload related to aesthetic design, allowing multiple functionalities to be managed within the same page without neglecting this aspect. In this way, and with the help of Thymeleaf, the front-end was coupled to the API Gateway to avoid unnecessary complexities.
The back-end was developed mostly in Java 17, using the Spring framework and its well-known libraries for correct, clean, and efficient communication between services, mostly using the REST architecture style. Security was managed and implemented using OAuth2 based on the service offered by Okta, a standard that allows websites or applications to access resources hosted in other applications on behalf of and with the prior permission of the user. Aspects requiring relational data persistence were provided by a PostgreSQL database instance, chosen for its open source environment, as well as its remarkable flexibility, data integrity, and scalability. In addition, asynchronous communications were handled for sending notifications using Apache Kafka.

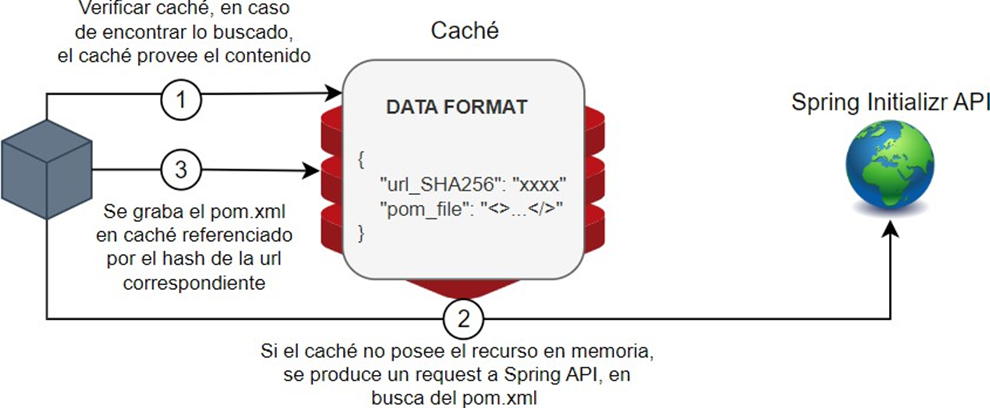

The logic related to dynamic code generation was managed semantically using RDF, which allowed the combinations and decisions made by the user on the front-end canvas to be specified correctly and in a structured manner, so that they could be sent to the back-end, queried using the SPARQL query language, and managed by Apache Jena in the Java services. To complete the process and generate the code specified and requested by the user, we decided to use Apache Velocity, due to its high capacity for the task required, and MinIO for storing and downloading the resulting files, thus avoiding dependence on specific cloud storage solutions.
Finally, the deployment and scalability of the system was managed using Docker, powered by Kubernetes. In this way, as with other decisions outlined above, dependence on cloud solutions is reduced, giving the system greater versatility and independent deployment capabilities.
Data Collection
To properly understand the problem to be addressed, we began by analyzing academic bibliographic sources. This approach allowed us to identify the main challenges in the development of distributed architectures, as well as the associated costs.
Another data collection method used was social media analysis. Due to the public nature of the project, this methodology proved highly enriching thanks to platforms such as Twitter, Reddit, and Medium, where software developers share and discuss ideas and experiences on topics and situations in the field of computing.
This resulted in two clearly contrasting approaches, thus justifying the choice of techniques presented. These approaches are divided into strictly theoretical ones, based on academic documents, and, at the other extreme, those based on social networks, which draw on the daily experiences of developers, who, at the end of the day, are the ones affected by the problem.
Project Planning
For ease of understanding, the planning will first be presented separately, followed by the Gantt chart used to organize the objectives of this Final Graduation Project.
Next, the tasks specified are presented together with the corresponding dates, followed by the aforementioned Gantt chart.
Figure 1. Development Plan

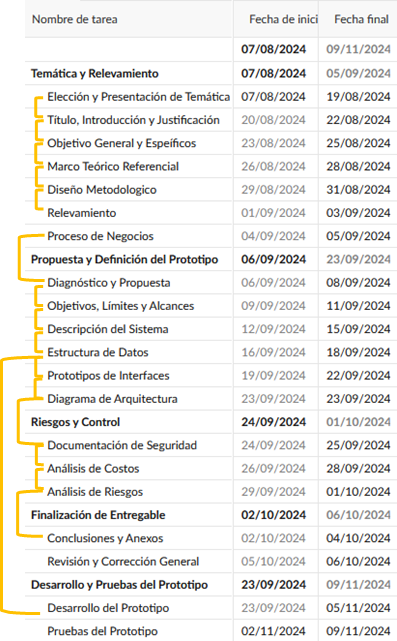

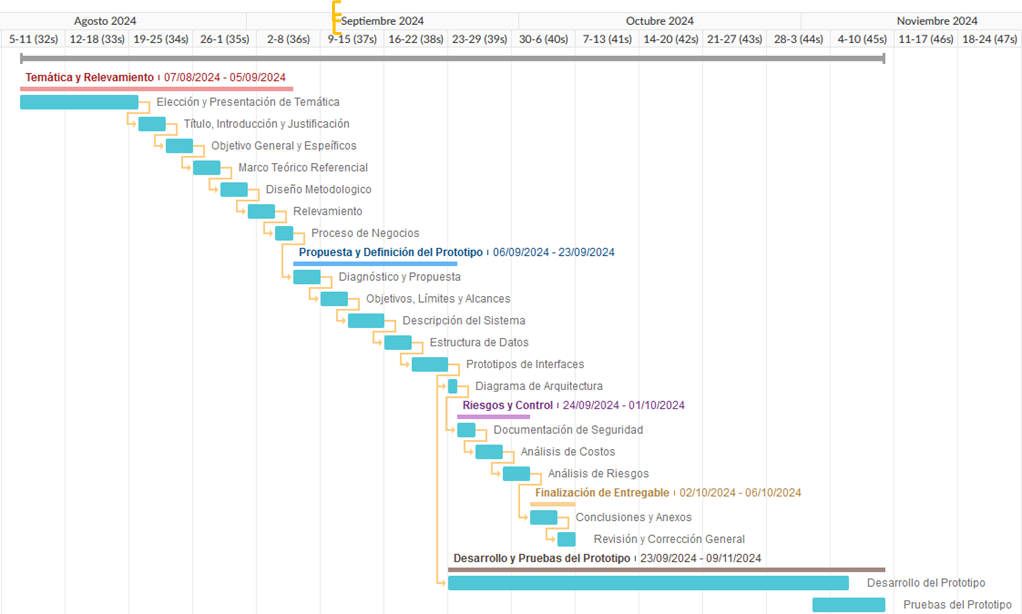

Figure 2. Gantt chart
RESULTS
System Description
Product Backlog
The Product Backlog for the prototype to be developed is presented below. It should be noted that the user stories shown correspond only to the basic functionalities necessary to demonstrate the purpose of the system. For this reason, only customizable e-commerce components are presented, as this allows the functionalities related to the combination and customization of compatible components within the application canvas to be demonstrated.
|
Table 1. Product Backlog |
||||
|
ID |
User Story |
Priority |
Story Points |
Dependencies |
|
HU-001 |
Registration on the platform via Google |
Registration |
5 |
- |
|
HU-002 |
Log in via Google |
Sign up |
2 |
HU-001 |
|
HU-003 |
Log out |
Med |
2 |
HU-002 |
|
HU-004 |
Drag-and-drop visual design |
Media |
5 |
- |
|
HU-005 |
User service template |
High |
5 |
- |
|
HU-006 |
User service |
Registration |
2 |
HU-005 |
|
HU-007 |
Product catalog service template |
High |
5 |
- |
|
HU-008 |
Product catalog service |
Registration |
3 |
HU-007 |
|
HU-009 |
Shopping cart service template |
Sign up |
5 |
- |
|
HU-010 |
Shopping cart service |
Sign up |
3 |
HU-009 |
|
HU-011 |
Order service template |
High |
5 |
- |
|
HU-012 |
Order service |
Registration |
3 |
HU-011 |
|
HU-013 |
Shipping service template |
Registration |
5 |
- |
|
HU-014 |
Shipping service |
Medium |
3 |
HU-013 |
|
HU-015 |
Notification service template |
High |
8 |
- |
|
HU-016 |
Notification service |
Medium |
3 |
HU-015 |
|
HU-017 |
Interact with available components |
Medium |
5 |
HU-006 |
|
HU-018 |
Component compatibility |
Medium |
5 |
HU-017 |
|
HU-019 |
Remove components from the design |
Low |
3 |
HU-018 |
|
HU-020 |
Select persistence in components |
Low |
3 |
HU-016 |
|
HU-021 |
Configure endpoints in components |
Media |
3 |
HU-016 |
|
HU-022 |
Select communication methodology |
Media |
8 |
HU-016 |
|
HU-023 |
Specify JWT security |
High |
3 |
HU-016 |
|
HU-024 |
Specify global configuration |
Medium |
5 |
HU-016 |
|
HU-025 |
Specify API Gateway |
Medium |
8 |
HU-016 |
|
HU-026 |
JSON to RDF translation |
High |
5 |
HU-025 |
|
HU-027 |

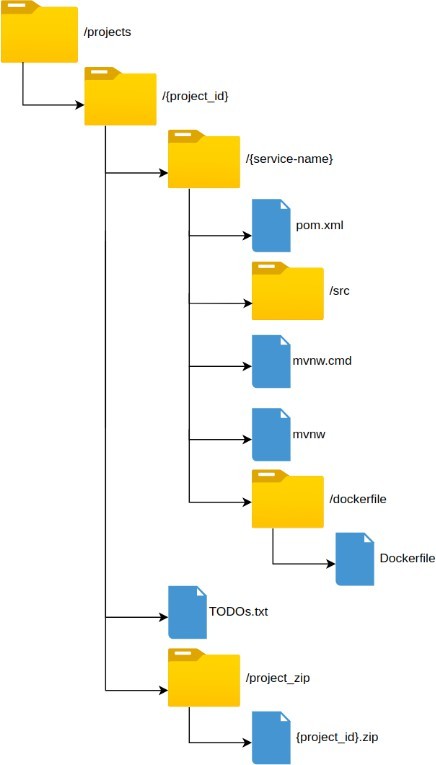

ZIP of the resulting architecture |
Low |
8 |
HU-026 |
|
HU-028 |

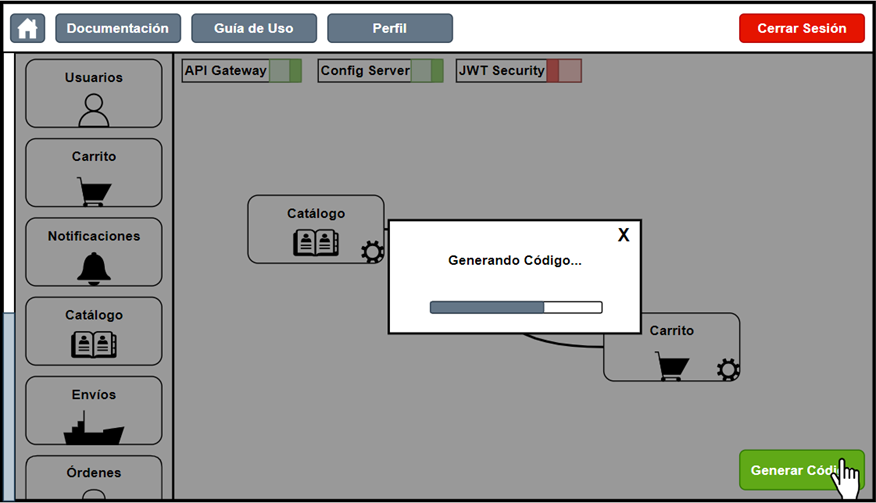

Dynamic generation process status |
Low |
5 |
HU-027 |
|
HU-029 |
Access ZIP files |
Download |
3 |
HU-027 |
|
HU-030 |
Component Dockerfiles |
High |
3 |
HU-026 |
|
HU-031 |
Pending tasks guide |
Low |
5 |
HU-025 |
|
HU-032 |
Component documentation |
Media |
5 |
HU-025 |
|
HU-033 |
Platform user guide |
Media |
5 |
HU-032 |
User stories
|
Table 2. HU-001 Registration on the platform via Google |
||||
|
ID |
HU-001 |
Name |
Registration on the platform via Google |
|
|
Description |
As a user, I want to register on the system using my Google account so that I can create my profile. |
|||
|
Criteria for Accept |
Given an existing Google user, when they decide to to register, the system must redirect them to a tab to provide the necessary permissions, allowing registration and informing the user once the action is complete. Given a Google user previously registered through their account on the platform, when they are prompted to register, the system must inform them that an account already exists with that user, inviting them to log in through a hyperlink to the corresponding section. |
|||
|
Priority |
High |
Estimated history points |
5 |
|
|

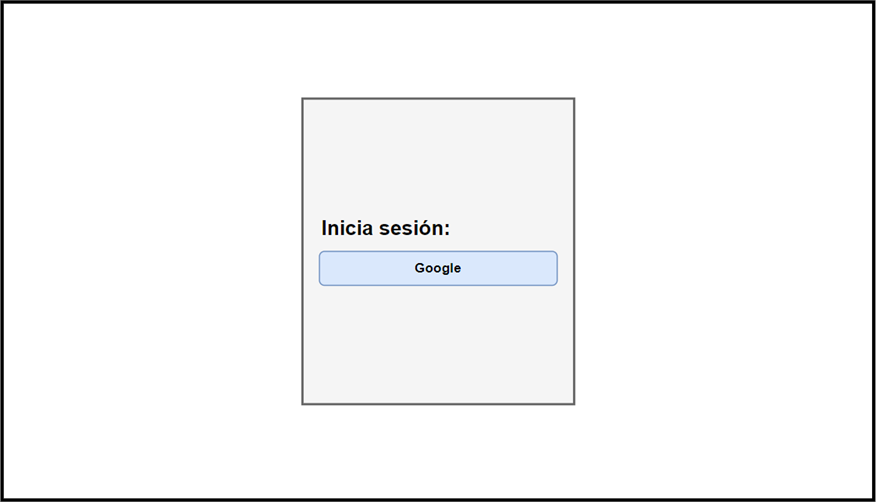

Table 3. HU002 Log in via Google |
||||
|
ID |
HU-002 |
Name |
Log in via Google |
|
|
Description |
As a user, I want to log in to the system using my Google account to access the platform and my previous architectures. . |
|||
|
Acceptance Criteria |
Given a user who is already registered with their Google account, when they log in using that account, the system should grant access and redirect them to the platform canvas. Given a user who is not registered with their Google account, when they attempt to log in using the unregistered account, the system must inform them that they are not registered, inviting them to do so via a hyperlink to the corresponding section. |
|||
|
Priority |
High |
Estimated story points |
2 |
|
|

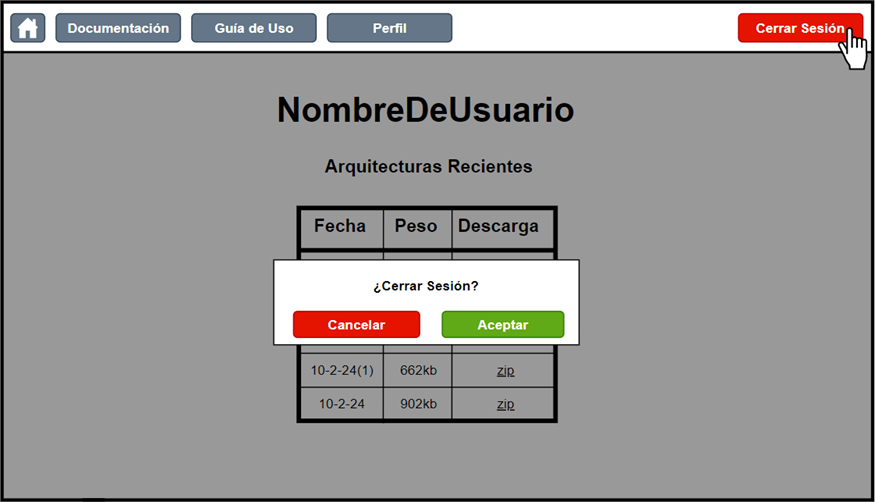

Table 4. HU-003 Close user session |
||||
|
ID |
HU-003 |
Name |
Log out user |
|
|
Description |
As a user, I want to log out of the system using my Google account to prevent unwanted access to my profile. |
|||
|
Acceptance Criteria |
Given a user logged into the system using valid credentials, when they decide to log out, the system must revoke the temporary credentials that allow access to the current session. |
|||
|
Priority |
Medium |
Estimated history points |
2 |
|
|

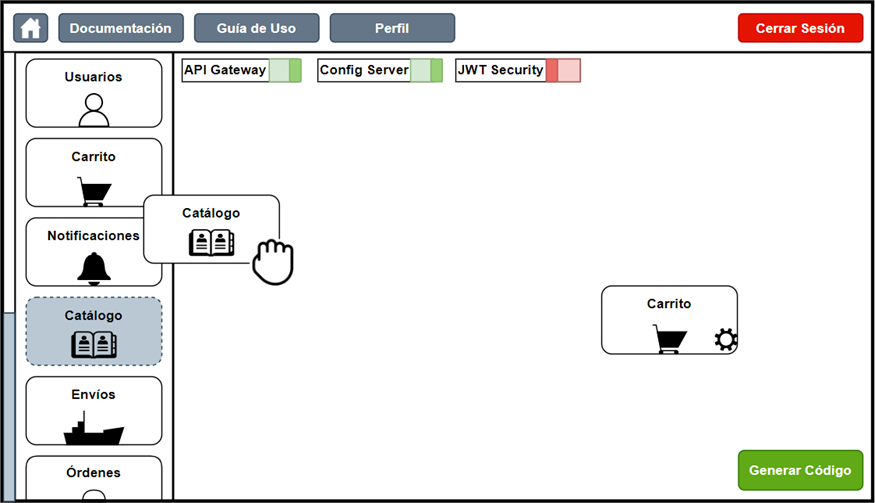

Table 5. HU-004 Drag-and-drop visual design |
||||
|
ID |
HU-004 |
Name |
Drag-and-drop visual design |
|
|
Description |
As a user, I want to drag components onto the canvas so that I can design an architecture visually. |
|||
|
Acceptance Criteria |
Given a logged-in user, when the user presses and drags the visual representation of a component onto the canvas, the system must move it to the area where the user drops the element. |
|||
|
Priority |
Medium |
Estimated story points |
5 |
|
|
Table 6. HU-005 User service template |
||||
|
ID |
HU-005 |
Name |
User Service Template |
|
|
Description |
As a user, I want the system to use a predefined template for the automatic creation of user services, so that all the components necessary to manage users and permissions without manual intervention. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when they generate an architecture that contains "User Service" within the design canvas, the system must automatically associate the service with a predefined template for user management. Given a user who has logged into the platform, when they combine a certain service compatible with "User Service," the system must adapt the code generation accordingly for proper interaction. |
|||
|
Priority |
High |
Estimated story points |
5 |
|
|
Table 7. HU-006 User services |
||||
|
ID |
HU-006 |
Name |
User service |
|
|
Description |
As a user, I want to have a user management service to incorporate into my architecture, so that I can manage their information and permissions. |
|||
|
Acceptance Criteria |
Given that a user has logged into the platform, when dragging the "Users" visual component to the design canvas, the system must automatically associate the order service to the predefined code template. |
|||
|
Priority |
High |
Estimated story points |
3 |
|
|
Table 8. HU-007 Product catalog service template |
||||
|
ID |
HU-007 |
Name |
Product catalog service template |
|
|
Description |
As a user, I want the system to use a predefined template for the automatic creation of a product catalog service so that I can display my current inventory. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when they generate an architecture that contains "Product Catalog Service" within the design canvas, the system must automatically associate the service with a predefined template for user management. Given a user who has logged into the platform, when they combine a certain service compatible with "Product Catalog Service," the system must adapt the code generation accordingly for proper interaction. |
|||
|
Priority |
High |
Estimated story points |
5 |
|
|
Table 9. HU-008 Product catalog service |
||||
|
ID |
HU-008 |
Name |
Product catalog service |
|
|
Description |
As a user, I want to have a product catalog service to incorporate into my architecture so that I can display my current stock to the public. |
|||
|
Acceptance Criteria |
Given that a user has logged into the platform, when they drag the "Product Catalog" visual component onto the design canvas, the system must automatically associate the order service with the code. |
|||
|
Priority |
High |
Estimated story points |
3 |
|
|
Table 10. HU-009 Shopping cart service template |
||||
|
ID |
HU-009 |
Name |
Shopping cart service template |
|
|
Description |
As a user, I want the system to use a predefined template for the automatic creation of a shopping cart service, so that users can make multiple product purchases. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when they generate an architecture that contains "Shopping Cart Service" within the design canvas, the system must automatically associate the service with a predefined template for user management. Given a user who has logged into the platform, when they combine a certain service compatible with "Shopping Cart Service," the system must adapt the code generation code generation accordingly for proper interaction. |
|||
|
Priority |
High |
Estimated story points |
5 |
|
|
Table 11. HU-010 Shopping cart service |
||||
|
ID |
HU-010 |
Name |
Shopping cart service |
|
|
Description |
As a user, I want to have a shopping cart service to incorporate into my architecture so that users of my system can purchase multiple items simultaneously. |
|||
|
Acceptance Criteria |
Given that a user has logged into the platform, when they drag the "Shopping Cart" visual component onto the design canvas, the system must automatically associate the order service with the code. |
|||
|
Priority |
High |
Estimated story points |
3 |
|
|
Table 12. HU-011 Order service template |
||||
|
ID |
HU-011 |
Name |
Order Service Template |
|
|
Description |
As a user, I want the system to use a predefined template for the automatic creation of an order service to manage the order issuance and administration process. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when they generate an architecture that contains "Order Service" within the design canvas, the system must automatically associate the service with a predefined template for user management. Given a user who has logged into the platform, when they combine a certain service compatible with "Order Service," the system must adapt the code generation accordingly for proper interaction. |
|||
|
Priority |
High |
Estimated story points |
5 |
|
|
Table 13. HU-012 Order service |
||||
|
ID |
HU-012 |
Name |
Order service |
|
|
Description |
As a user, I want to have a service capable of managing orders to incorporate into my architecture, to handle orders issued within the system and act accordingly. |
|||
|
Acceptance Criteria |
Since a user is logged into the platform, when they drag the "Orders" visual component to the design canvas, the system must automatically associate the order service to the predefined code template. |
|||
|
Priority |
High |
Estimated story points |
3 |
|
|
Table 14. HU-013 Shipping service template |
||||
|
ID |
HU-013 |
Name |
Shipping Service Template |
|
|
Description |
As a user, I want the system to use a predefined template for the automatic creation of a shipping service so that I can manage the status of shipments. |
|||
|
Acceptance Criteria |
Given a user who is logged into the platform, when they generate an architecture that contains "Shipping Service" within the design canvas, the system must automatically associate the service with a predefined template for user management. Given a user who has logged into the platform, when they combine a certain service compatible with "Shipping Service," the system must adapt the code generation form accordingly for proper interaction. |
|||
|
Priority |
High |
Estimated story points |
5 |
|
|
Table 15. HU-014 Shipping service |
||||
|
ID |
HU-014 |
Name |
Shipping service |
|
|
Description |
As a user, I want to have a service capable of managing the status of my system's shipments to incorporate into my architecture, so that I can track and update the status of shipments. |
|||
|
Acceptance Criteria |
Since a user is logged into the platform, when they drag the "Shipments" visual component to the design canvas, the system must automatically associate the order service to the predefined code template. |
|||
|
Priority |
Medium |
Estimated story points |
3 |
|
|
Table 16. HU-015 Notification service template |
||||
|
ID |
HU-015 |
Name |
Notification Service Template |
|
|
Description |
As a user, I want the system to use a predefined template for the automatic creation of a notification service, so that it can send alerts and messages to users. |
|||
|
Acceptance Criteria |
Given a user who is logged into the platform, when they generate an architecture that contains "Notification Service" within the design canvas, the system must automatically associate the service with a predefined template for user management. Given a user who has logged into the platform, when they combine a certain service compatible with "Notification Service," the system must adapt the code generation code accordingly for proper interaction. |
|||
|
Priority |
High |
Estimated story points |
8 |
|
|
Table 17. HU-016 Notification service |
||||
|
ID |
HU-016 |
Name |
Notification service |
|
|
Description |
As a user, I want to have a notification service to incorporate into my architecture, to send messages and alerts to system users about important events. |
|||
|
Acceptance Criteria |
Given that a user has logged into the platform, when they drag the "Notifications" visual component onto the design canvas, the system must automatically associate the order service to the predefined code template. |
|||
|
Priority |
Medium |
Estimated story points |
3 |
|
|
Table 18. HU-017 View available components |
||||
|
ID |
HU-017 |
Name |
Interact with available components |
|
|
Description |
As a user, I want to view the available components so that I can select and combine them on the canvas according to my needs. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when they place a component on the canvas and want to join it with another compatible component, the system must create a graphical link using a line to express the successful relationship. Given a user who has logged into the platform, when they place a component on the canvas and want to join it with another incompatible component, the system must display a pop-up indicating that the combination is not legal, inviting the user to review the platform documentation. |
|||
|
Priority |
Medium |
Estimated story points |
5 |
|
|
Table 19. HU-018 Component compatibility |
||||
|
ID |
HU-018 |
Name |
Component compatibility |
|
|
Description |
As a user, I want to see which components are compatible with the selected component is compatible with, in order to combine them correctly on the canvas. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when they interact with the "+" button attached to the component on the canvas, the system should highlight the "+" buttons of the other compatible components on the canvas. Given a user who has logged into the platform, when they highlight the compatibilities of a component and tap the canvas again, the system must uncheck the previously highlighted connections. |
|||
|
Priority |
Medium |
Estimated story points |
5 |
|
|
Table 20. HU-019 Remove design components |
||||
|
ID |
HU-019 |
Name |
Remove design components |
|
|
Description |
As a user, I want to delete a component from the canvas to remove it from the designed architecture. |
|||
|
Acceptance Criteria |
Given a user who is logged into the platform, when they place the mouse over a component displayed on the canvas, the system must display an "X" icon referring to the option to delete the component. Given a user who has logged into the platform, when they interact with the "X" button of a component on the canvas, the system must ask if they want to delete the component. If so, it executes the action, and if not, it closes the pop-up window no, it removes the query pop-up. |
|||
|
Priority |
Low |
Estimated story points |
3 |
|
|
Table 21. HU-020 Select persistence in components |
||||
|
ID |
HU-020 |
Name |
Select persistence in components |
|
|
Description |
As a user, I want to configure the database of a component so that I can choose the one that best suits the requirements of my architecture. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when interacting with the default database attached to the component within the canvas, the system must display the alternative options available for the service, allowing the default to be modified. |
|||
|
Priority |
Low |
Estimated story points |
3 |
|
|
Table 22. HU-021 Configure endpoints in components |
||||
|
ID |
HU-021 |
Name |
Configure endpoints in components |
|
|
Description |
As a user, I want to configure the URL of the endpoints of a component to suit my infrastructure requirements. |
|||
|
Acceptance Criteria |
Given a user who is logged into the platform, when they hover the mouse over a component on the canvas, the system must display a button representing a "nut" to access a pop-up with the service settings. Given a user who has logged into the platform, when they interact with the configuration button of a microservice, the system must present the option to modify the prefix of the microservice endpoints, applying the changes by clicking "accept." Given a user who is logged into the platform, when they enter an invalid string as the endpoint prefix and press "accept," the system should notify them that no changes were made due to invalid characters, keeping the user in the pop-up displaying the string prior to the illegal entry. |
|||
|
Priority |
Medium |
Estimated story points |
3 |
|
|
Table 23. HU-022 Select communication methodology |
||||
|
ID |
HU-022 |
Name |
Select communication methodology |
|
|
Description |
As a user, I want to select the communication methodology between two components so that they adapt to the needs of my system. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when creating a connection between two compatible components, the system must display a symbol in the middle of the connection that, when interacted with, will display a list of the connection types compatible between both microservices , allowing the desired option to be selected. |
|||
|
Priority |
Medium |
Estimated story points |
8 |
|
|
Table 24. HU-023 Specify JWT security |
||||
|
ID |
HU-023 |
Name |
Specify JWT security |
|
|
Description |
As a user, I want to specify the use of JWT as a security measure so that the security of the architecture meets my requirements. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when accessing the canvas, the system must display a global option in the upper right corner to secure the architecture using JWT, allowing it to be disabled or enable it. |
|||
|
High |
High |
Estimated story points |
3 |
|
|
Table 25. HU-024 Specify global configuration |
||||
|
ID |
HU-024 |
Name |
Specify global configuration |
|
|
Description |
As a user, I want to specify the use of a global configuration server so that the architecture fits my requirements. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when accessing the canvas, the system must display an option in the upper right corner, below "JWT," to manage all service configurations through a configuration server, allowing disable or enable it. |
|||
|
Priority |
Medium |
Estimated story points |
5 |
|
|
Table 26. HU-025 Specify API Gateway |
||||
|
ID |
HU-025 |
Name |
Specify API Gateway |
|
|
Description |
As a user, I want to specify the generation of an API gateway so that components can interact directly |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when accessing the canvas, the system must display an option in the upper right corner, under "Config Server," to manage all architecture interactions through an API gateway, allowing it to be disabled or enabled. |
|||
|
Priority |
Medium |
Estimated story points |
8 |
|
|
Table 27. HU-026 Translation from JSON to RDF |
||||
|
ID |
HU-026 |
Name |
Translation from JSON to RDF |
|
|
Description |
As a user, I want the system to automatically convert data that specifies the generated architecture from JSON format to RDF to ensure a structured specification. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when requesting the processing of the resulting architecture, the system must represent the information using JSON, subsequently translating it into semantic RDF content to provide structure and enable queries. |
|||
|
Priority |
High |
Estimated story points |
5 |
|
|
Table 28. HU-027 ZIP of the resulting architecture |
||||
|
ID |
HU-027 |
Name |
ZIP of the resulting architecture |
|
|
Description |
As a user, I want to request a ZIP file from the canvas with the designed architecture to obtain the files that comprise it and thus configure it in my local environment. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when configuring an architecture and requesting its generation, the system must convert the generated code into a ZIP file, informing the user when the process is complete and inviting them to download it from their user profile user profile. |
|||
|
Low |
Low |
Estimated story points |
8 |
|
|
Table 29. HU-028 Status of dynamic generation process |
||||
|
ID |
HU-028 |
Name |
Dynamic generation process status |
|
|
Description |
As a user, I want to know the status of the dynamic generation of my architecture in order to estimate when it will be completed. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when configuring an architecture and requesting its generation, the system must display a pop-up indicating the status of the process, showing the following statuses: Creating the pom.xml Generating the code Compressing the architecture Process completed |
|||
|
Priority |
Low |
Estimated story points |
5 |
|
|
Table 30. HU-029 Access previous ZIP files |
||||
|
ID |
HU-029 |
Name |
Access ZIP files |
|
|
Description |
As a user, I want to access my ZIP files generated so that I can download them again |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when selecting the profile symbol in the upper right corner, the system should redirect the user to a screen displaying their last 5 generated architectures, allowing them to be downloaded with a simple click on the button attached to the right of each one. |
|||
|
Priority |
Low |
Estimated history points |
3 |
|
|
Table 31. HU-030 Component Dockerfiles |
||||
|
ID |
HU-030 |
Name |
Component Dockerfiles |
|
|
Description |
As a user, I want to have Dockerfiles associated with the components of the architecture to facilitate their deployment. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when obtaining the zip file resulting from an architecture, the system must include within that file an individual Dockerfile for each component of the architecture, to allow for its deployment and that of its persistence component. |
|||
|
Priority |
High |
Estimated story points |
3 |
|
|
Table 32. HU-031 Guide to pending tasks |
||||
|
ID |
HU-031 |
Name |
Guide to pending tasks |
|
|
Description |
As a user, I want to obtain a to-do guide (TO-TO's) in the generated code to adjust and customize the downloaded architecture. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when obtaining the zip file resulting from an architecture, the system must include within that file a .txt file explaining the TO-DO's present in the code and their reason for existence. |
|||
|
Priority |
Low |
Estimated story points |
5 |
|
|
Table 33. HU-032 Component documentation |
||||
|
ID |
HU-032 |
Name |
Component documentation |
|
|
Description |
As a user, I want to access the component documentation to understand its structure and detailed operation. |
|||
|
Acceptance Criteria |
Given a user who has logged into the platform, when they click on the documentation section at the top of the screen, the system should redirect them to a screen with a side menu where the available components are listed. |
|||
|
|
Given a user who has logged into the platform, when they click on a specific component in the documentation, the system must display it, specifying its functionality, compatibilities, and endpoints. |
|||
|
Priority |
Medium |
Estimated story points |
5 |
|
|
Table 34. HU-033 Platform user guide |
||||
|
ID |
HU-033 |
Name |
Platform user guide |
|
|
Description |
As a user, I would like to access a user guide for the platform to understand how it works and get the most out of it. |
|||
|
Acceptance Criteria |
When a user who is logged into the platform clicks on the section referring to the platform user guide at the top of the screen, the system should direct them to the corresponding screen, where a brief user guide for the platform is presented. |
|||
|
Priority |
Medium |
Estimated history points |
5 |
|
Sprint Backlog
The following table shows the Backlog for the first Sprint of the prototype to be developed, with a set duration of 14 days.
|
Table 35. Sprint Backlog |
|||||
|
Sprint |
User Story |
Tasks |
Priority |
Estimated (days) |
Status |
|
1 |
Registration on the platform via Google (HU-001) |
Define and implement data persistence methodology and structure |
High |
1 |
Done |
|
1 |
|
Code and integrate registration and connection module with Google OAUTH2 |
Registration |
2 |
Done |
|
1 |
|
Design graphical interface |
Medium |
1 |
Done |
|
1 |
|
Perform unit testing on the developed module |
High |
1 |
Done |
|
1 |
Log in via Google (HU-002) |
Encode and integrate login module |
Registration |
1 |
Done |
|
1 |
|
Design graphical interface |
Medium |
½ |
Done |
|
1 |
|
Perform unit testing on the developed module |
High |
½ |
Done |
|
1 |
Close user session (HU-003) |
Encode and integrate logout module |
Medium |
1 |
Done |
|
1 |
|
Design graphical interface |
Medium |
1 |
Done |
|
1 |
|
Perform unit testing on the developed module |
Medium |
1 |
Done |
|
1 |
User service template (HU- 005) |
Design layout and compatibility for the user service template |
High |
1 |
Completed |
|
1 |
|
Encode user service template |
Register |
2 |
Done |
|
1 |
|
Perform unit testing on the components generated as a result of using the developed template |
High |
1 |
Done |
Data Structure
The project has four data structures that support its processes and interactions, providing the system with everything from correct information persistence to a notable improvement in overall system efficiency and the ability to send asynchronous notifications to users within the platform.

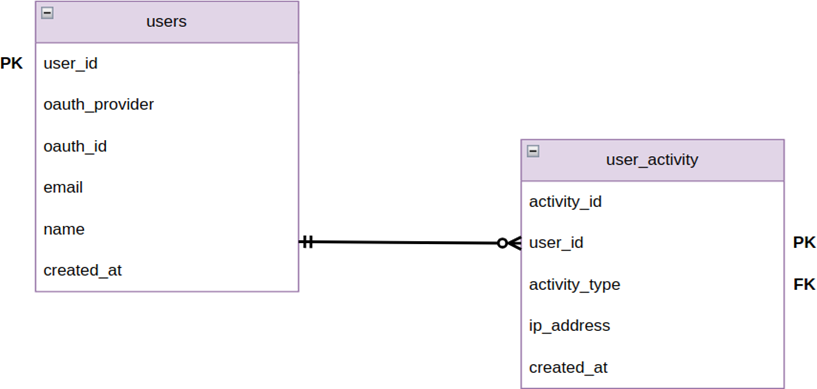

Below is the DER diagram of the PostgreSQL relational database, which handles user administration and management and their corresponding identifiers, including those provided by the OAUTH2 identification server.
Figure 3. DER relational database for user management
The data dictionaries for the relational database just presented are shown below:
|
Table 36. Users table dictionary |
|||
|
Table: users |
|||
|
Field |
Length |
Data type |
Description |
|
user_id |
19 |
Numeric |
User identifier |
|
oauth_provider |
16 |
Alphabetic |
OAUTH provider |
|
oauth_id |
19 |
Numeric |
Identification number provided by OAUTH |
|
|
254 |
Alphabetic |
Email provided by OAUTH provider |
|
name |
254 |
Alphabetical |
Name provided by OAUTH provider |
|
created_at |
19 |
Timestamp |
Time of account creation |
|
Table 37. user_activity table dictionary |
|||
|
Table: user_activity |
|||
|
Field |
Length |
Data type |
Description |
|
activity_id |
19 |
Numeric |
Session identifier |
|
user_id |
19 |
Numeric |
User identifier |
|
activity_type |
254 |
Alphabetic |
Type of activity performed |
|
ip_address |
15 |
Numeric |
IPv4 address |
|
created_at |
19 |
Timestamp |
Time the activity was performed |
During the design of the system, it was found that including temporary cache storage could provide a temporary reduction in the system's response to the user, taking advantage of previously performed processing. For this reason, temporary storage was implemented with REDIS, which seeks to reduce calls to the Spring Initializr API by analyzing previous calls in a short period of time in search of one that is similar to the one to be made.
The following diagram illustrates the process mentioned above:
Figure 4. Explanation of cache system functionality
In this way, in many cases, valuable time consumed by a call to an external API is saved.
The simple data structure of the cache mentioned above is shown below:

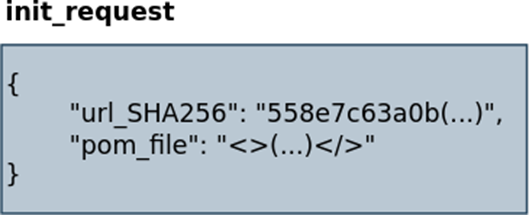

Figure 5. Cache data structure for poms generation
The dictionary for the data structure presented is shown below
|
Table 38. Dictionary of data present in the cache |
|||
|
Field |
Length |
Data type |
Description |
|
url_SHA256 |
64 |
Alphabetic |
SHA-256 hash of the URL used for the request to the Spring Initializr API |
|
pom_file |
65535(max) |
Alphabetical |
Contents of the pom.xml file resulting from the request |
A data structure was also defined to store the architectures designed by users on the platform and their corresponding automatically generated code. In this way, using MinIO, the system has a platform where it can work dynamically with the code, allowing users to download a .zip file with the designed architecture. The aforementioned data structure complies with the following format:
Figure 6. File structure for storing and generating code
In addition, for proper functioning in asynchronous processes, the system required the inclusion of a messaging system. In this case, Apache Kafka was chosen. This tool performs two crucial tasks for the system:
· Inform of the presence of a new architecture to be generated and provide its specification.
· Keeping the user updated on the generation process of the requested code, informing them of the status of the final product.
· The topics used for the aforementioned functions are service-generation-request and service-generation-status, respectively, which interact with the system services as follows:

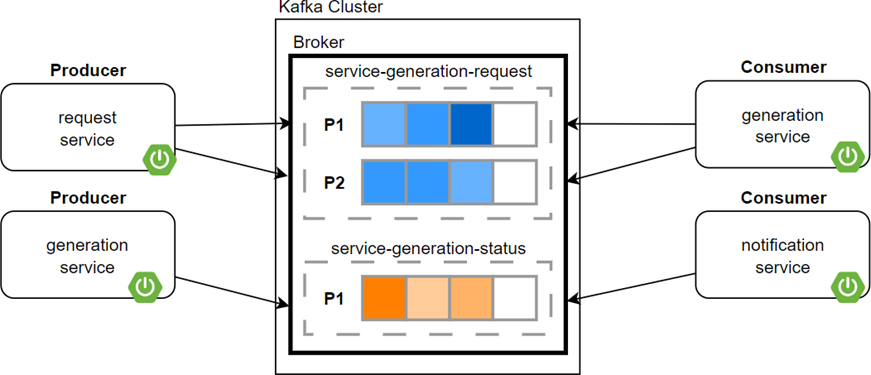

Figure 7. Diagram explaining the asynchronous message system
As can be seen in the diagram, the service consists of a single broker, and service-generation-request has two partitions, compared to service-generation-status, which only has one. This decision is based on the possibility of parallel processing of user-generated requests provided by the presence of more than one partition, which is not necessary in the case of code generation progress messages.
The data model for each topic mentioned is presented below.
Service-generation-status:
Using the information contained in the topic described above, the system is able to keep the user informed of the progress made in generating the code for the system they designed on the canvas.

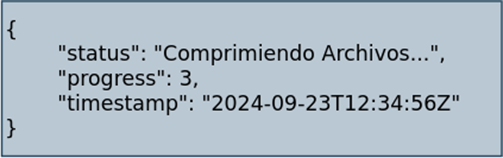

Figure 8. Data structure of the topic 'service-generation-status'
The dictionary for the data structure presented is shown below:
|
Table 39. Data dictionary for the 'service-generation-status' topic |
|||
|
Field |
Length |
Data type |
Description |
|
status |
32 |
Alphabetic |
Informative message about the dynamic code generation process |
|
progress |
1 |
Numeric |
Number range from 1 to 3, indicating the step in the process where dynamic code generation is currently taking place. |
|
timestamp |
1 |
Alphabetic |
Time of activity status update |
Service-generation-request: the information carried by this defined topic is critical to the functioning of the system, since based on the JSON example below, the system asynchronously receives new tasks to be processed and builds the necessary code requested by the user. It is important to note that JSON has many attributes that may seem unnecessary for the prototype, as they do not allow customization, but this ensures that the system is ready for further customization in the event of full development

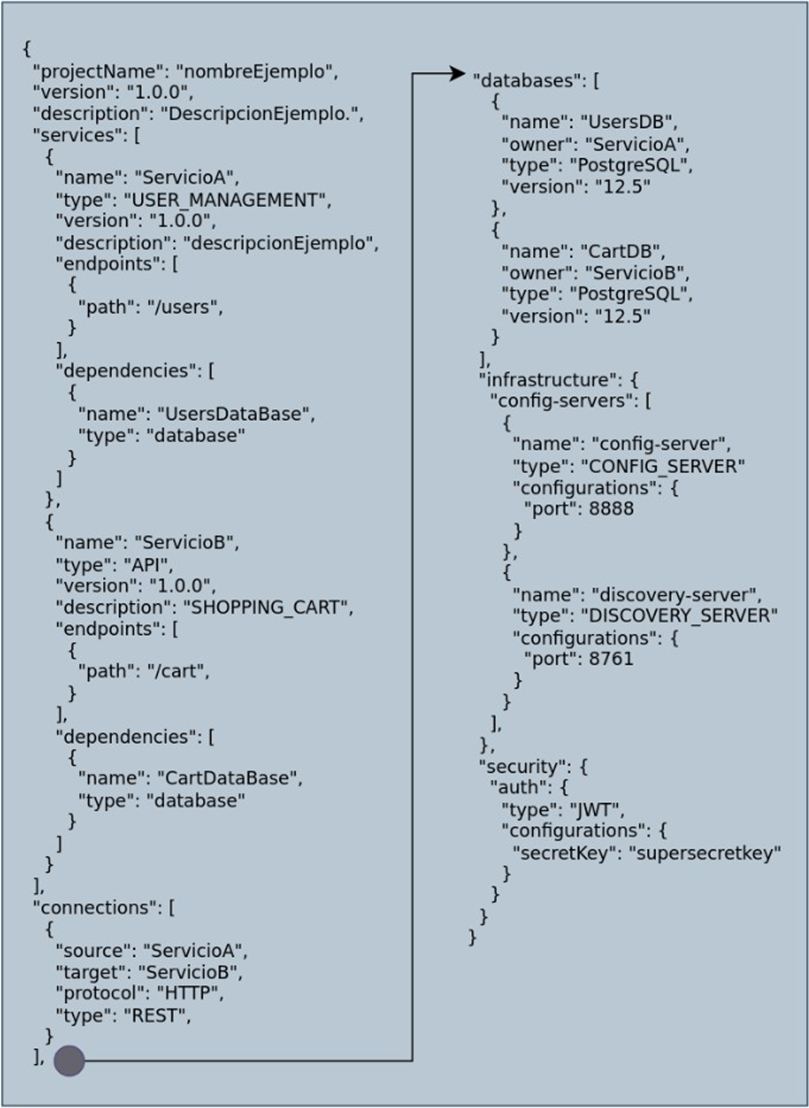

Figure 9. Data structure of the 'service-generation-request' topic
The dictionary for the data structure presented is shown below:
|
Table 40. Dictionary of the 'service-generation-request' topic |
||
|
Field |
Data type |
Description |
|
projectName |
Alphabetic |
Name of the general project |
|
version |
Numeric |
Project version, 1,0 by default |
|
services |
Alphabetical |
Contains and defines the components of the architecture |
|
name |
Alphabetical |
Component name |
|
type |
Alphabetical |
Component type, i.e., what the service is about |
|
version |
Numeric |
Version of the template used |
|
description |
Alphabetical |
Component description |
|
endpoints |
Alphabetical |
Section referring to the component's endpoints |
|
path |
Alphabetical |
Base URL of the component |
|
dependencies |
Alphabetical |
Component dependencies |
|
connections |
Alphabetical |
Connections between components specified on the canvas |
|
source |
Alphabetical |
Point A of the connection |
|
target |
Alphabetical |
Connection point B |
|
protocol |
Alphabetical |
Communication protocol |
|
type |
Alphabet |
Methodology used for communication |
|
databases |
Alphabetical |
Contains the persistence elements of the services |
|
name |
Alphabetical |
Name of the persistence element |
|
owner |
Alphabetical |
Service that interacts with the persistence element |
|
type |
Alphabet |
Tool used |
|
version |
Numeric |
Version of the tool used |
|
infrastructure |
Alphabetical |
Contains configuration and infrastructure elements |
|
name |
Alphabetical |
Name of the infrastructure component |
|
type |
Alphabetic |
Infrastructure component type |
|
port |
Numeric |
Infrastructure component port |
|
security |
Alphabetic |
Contains the global security elements of the system |
|
auth |
Alphabetical |
Specifies how authentication is performed in the system |
|
type |
Alphabetic |
Authentication methodology |
|
configurations |
Alphabetic |
Contains information for security customization |
|
secretKey |
Alphabetical |
Secret key used to secure the system |
Screen Interface Prototypes
When accessing the web platform, users are required to log in using their Google account.
Figure 10. Login screen

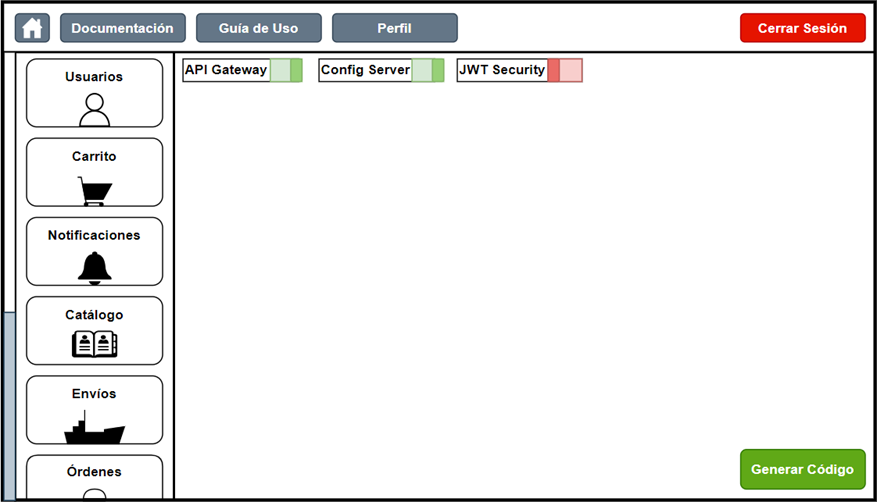

Once the user has been validated and/or registered in the system, they are sent to the platform's home page, where its core functionality, related to distributed systems design, is located.
Figure 11. Home screen
On the main screen, the user can drag the components of the architecture onto the canvas to begin designing the system.
Figure 12. Drag-and-drop functionality

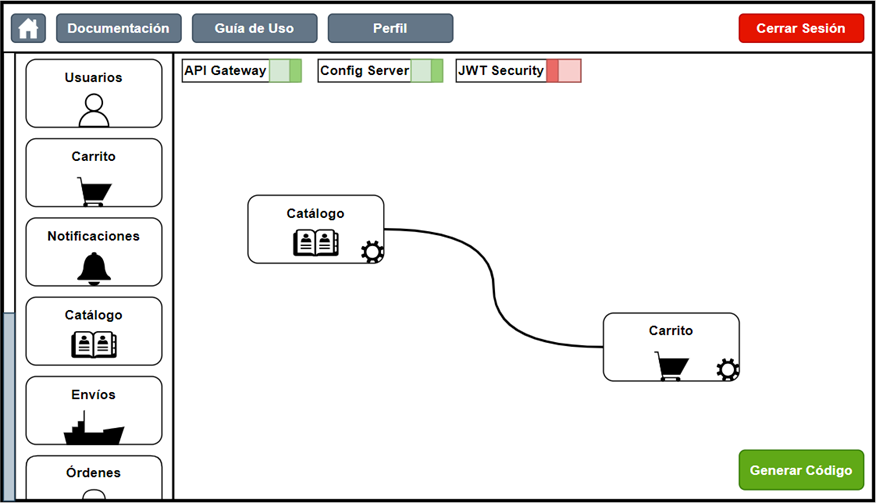

The components placed on the canvas can, if compatible, be joined together to generate more complex functionalities through their interaction.
Figure 13. Component joining functionality

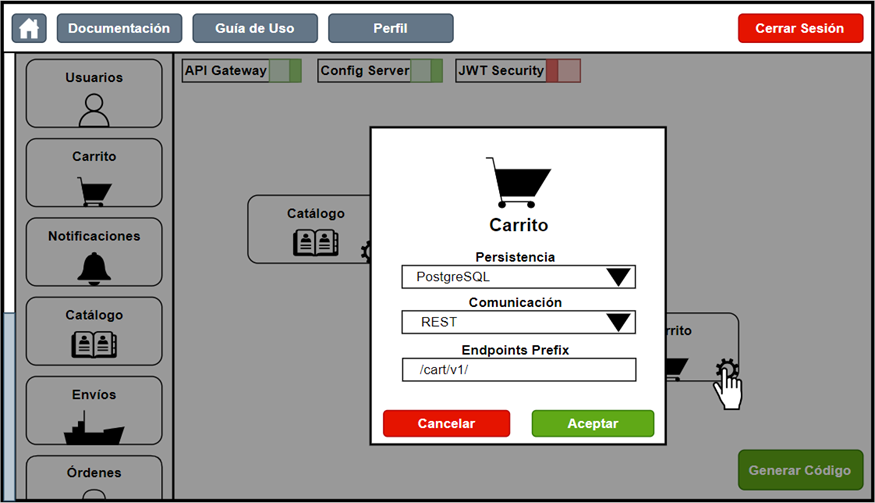

To customize each component placed on the canvas, the user must click on the corresponding gear icon to access the configuration menu.
Figure 14. Component configuration screen
Once the user has designed and configured a specific architecture to their liking, they can generate the corresponding code by pressing the green button located in the lower right corner of the canvas, where they will receive real-time progress on the dynamic code generation process.
Figure 15. Code generation process screen

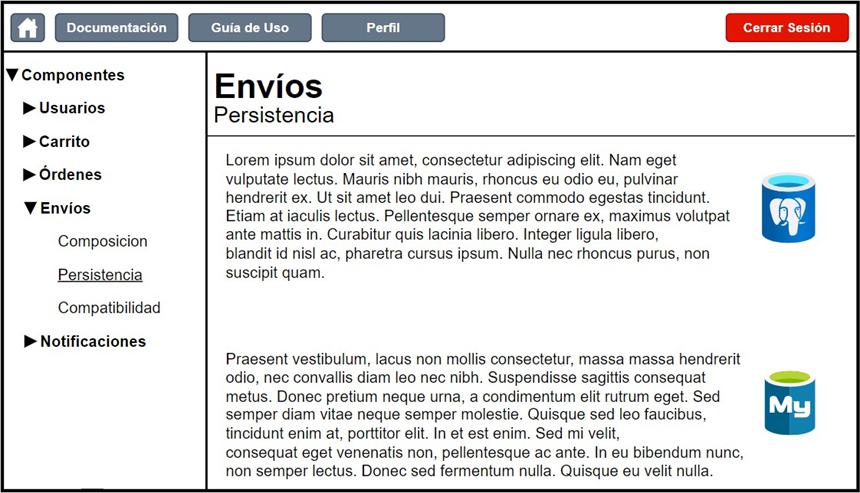

To learn about the different components that can be used on the canvas, their composition, operation, persistence methodology, and compatibilities, users can access the documentation section, where they will find the information necessary to understand each available piece.
Figure 16. Documentation screen

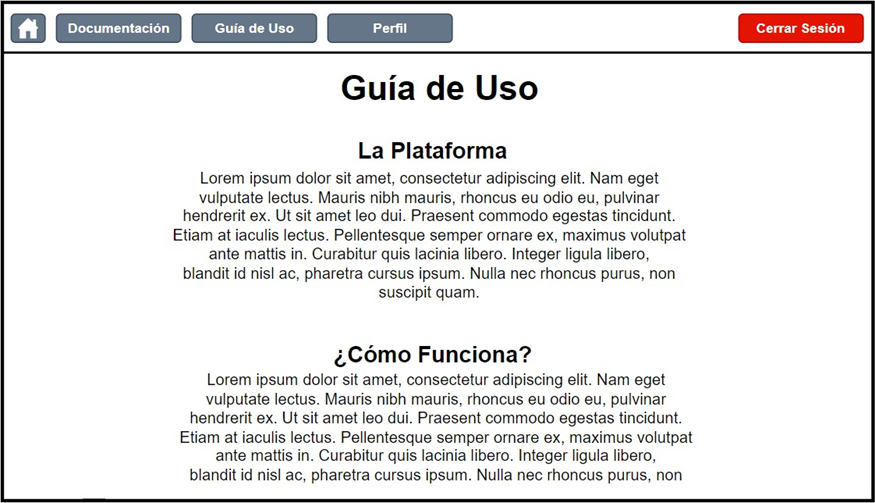

If users wish to understand how the platform works, there is a section called User Guide, where they can access the aforementioned information.
Figure 17. User guide screen

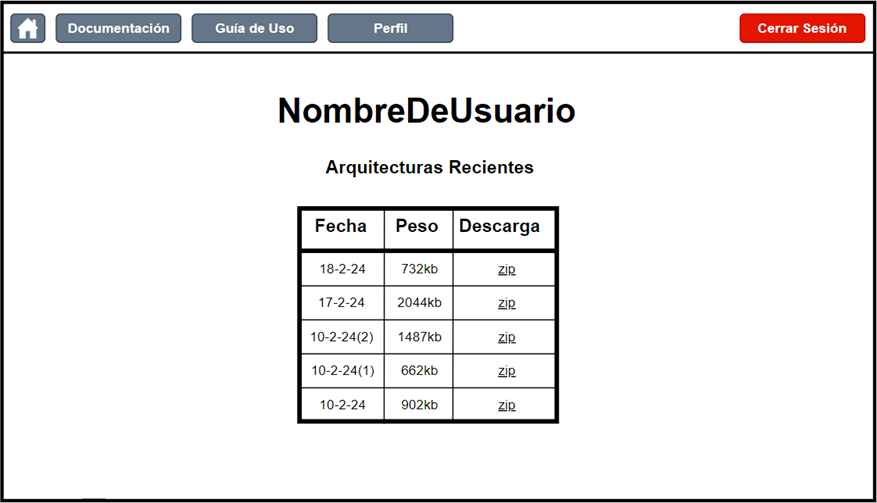

When the system user generates architectures on the canvas, the last five are saved and can be downloaded from the Profile section, which provides basic useful information about the architectures and a link to download them.
Figure 18. User profile screen
Finally, to conclude their activity on the platform, users can log out by clicking the button in the upper right corner after confirming that they wish to do so.
Figure 19. Logout screen
Architecture Diagram

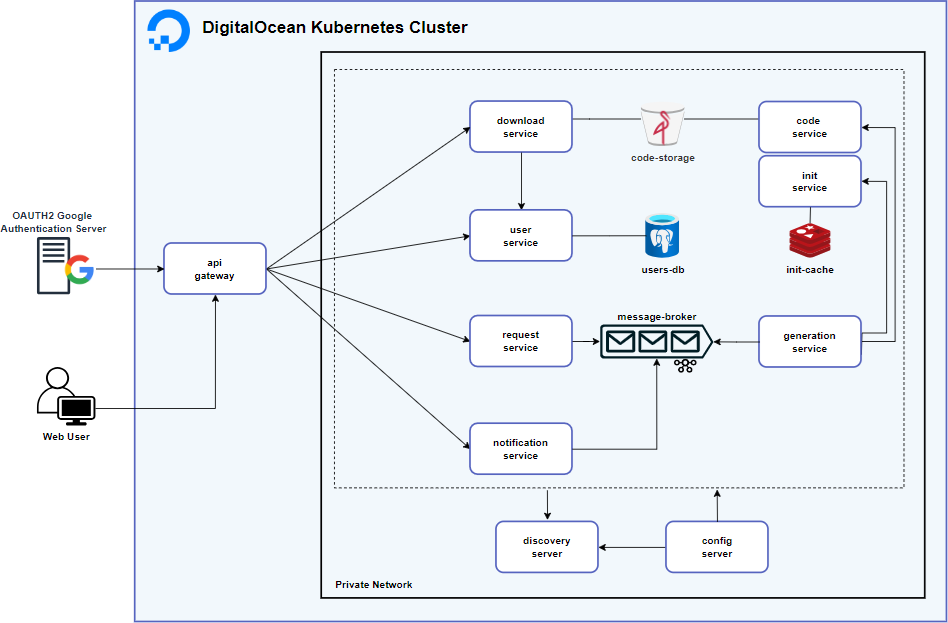

The architecture diagram for the project discussed in this document is shown below. Due to the decisions made, as can be seen in the diagram, a highly scalable and efficient system was achieved for the intended purpose.
Figure 20. Architecture diagram
Security
Access to the Application
As stated repeatedly throughout this document, the project manages users through OAuth2, specifically through Google login, which is a very convenient alternative for an application such as the one developed, due to its permission for access by the general public.
Although for backup, auditing, and resource management purposes, the project itself stores the information of users registered on the platform, passwords are managed by Google, since it is through a user of the aforementioned platform that the system grants access to the project. Therefore, users must comply with Google's requirements for creating their credentials. Below is a list of Google's current requirements for creating an email address under its domain and the corresponding password.
Requirements for creating an email address:
· It must follow the standard format for an email address, i.e., nombre@dominio.com. In this case, the domain is @gmail.com.
· The username, i.e., the text before the '@', must contain between 6 and 30 characters.
· Only characters from a-z and A-Z are allowed, as well as numbers 0-9 and special characters such as the period (.), the underscore (_), and the hyphen (-).
· The email address must not be in use in Gmail. This means that each email address must be unique.
Requirements for specifying a password:
· The password must contain more than 8 characters.
· Although there is no related limitation, the use of lowercase letters, uppercase letters, numbers, and special characters is recommended.
· It must not be included in Google's list of common passwords.
In turn, Google stores user passwords using hash functions that convert the password into an irreversible text string, as well as adding a random value called a 'salt' to make brute force attacks more difficult. It is also worth noting that Google users can enable two-factor authentication, known as 2FA, which adds an extra layer of security by requiring a second element to access the user account.
With regard to the user roles outlined below, due to the nature of the project and the development of only core functionalities for the prototype, the administrator user has no advantage or differential capacity. Even so, it was added to the system in a "logical" manner, with a view to future updates that may provide features requiring extra control within the application.
Profiles present in the application:
· Regular user: has access to all the features present in the technological prototype, i.e., the specification, configuration, and download of services referenced to their user profile and the ability to consult both the documentation present on the platform and the user guide.
· Administrator user: as explained above, the administrator user does not currently have any different permissions from the common user, but is still present in the system in case of possible updates.
Information Backup Policy
In order to back up the information related to both the application code and the information produced as a result of its use and execution, two copies of the application source code and three copies of the user data are stored.
User data is initially stored on the hosting service where the database engine container volume is stored. In this case, the cloud service provider is DigitalOcean. As a second backup, the system runs a process every day at 00:00 (GMT-3) to keep a copy of the database content on the local server at the development offices. Finally, in order to maximize user data integrity, a copy of the user data is stored weekly on an external hard drive, which is stored in a confidential location in a building other than the local server and is known only to the company's management.
The application source code is handled and stored on GitHub, where developers work on it. In turn, as mentioned above, functional versions are backed up and stored in two instances upon completion. First, the code is stored manually on the company's local server and then stored on an external hard drive kept in a confidential location in a building other than the company's offices and known only to the company's management.
The local server mentioned for both source code and user data backup is a NAS located in the development offices, configured with RAID 10 to obtain a high level of redundancy and remarkable performance, ensuring outstanding information availability even in the event of incidents and providing fast recovery of persistent content.
DigitalOcean also takes availability into account and, in fact, this is one of the factors that influenced the decision to run the system on its cloud services, since the platform boasts 99,99 % uptime for the products used to deploy and run the developed project.(1)
Cost Analysis
Below is a breakdown of the estimated costs of the project in terms of the human resources required for the development of the computer system. These were obtained from the website of the Professional Council of Computer Sciences of the province of Córdoba on October 21, 2024.
|
Table 41. HR cost analysis |
|||
|
Role |
Fees |
Months |
Subtotal (AR$) |
|
Senior Programmer Analyst |
$1 697 430,72 |
3 |
$5 092 292,16 |
|
Backend Developer |
$1 985 445,37 |
3 |
$5 956 335,93 |
|
Frontend Developer |
$1 883 828,08 |
2 |
$3 767 656,16 |
|
Application Testing Analyst |
$1 646 481,38 |
2 |
$3 292 962,76 |
|
Total Development |
$18 109 247 |
||
Having presented the figures relating to labor, we now present the operating costs considered necessary for the proper deployment and operation of the project.
|
Table 42. Operating cost analysis |
||||
|
Resource |
Amount |
Source |
Subtotal AR$ |
Monthly AR$ |
|
* Kubernetes Basic Node (DigitalOcean) 8 GB RAM 4 vCPU 160GB storage |
2 |
- |
$94 464 |
|
|
.com domain name |
1 |
- |
$2144 |
|
|
NAS Drive Linux OS RAID 10 compatible 4 HDD capacity |
1 |
https://www.compel.com.ar/storage/storage/nas-drive-au-4b-25-35a335696.html |
$816,85 |
- |
|
3TB HDD NAS |
4 |
https://www.compel.com.ar/storage/hdd-internal/hdd-3t-sea-35-nas-ironwol-328858.html |
$636 |
- |
|
Total Initial Cost |
$1 453 511 |
|
||
|
Total Fixed Costs |
$96 608 |
|||
|
Note: * Original value in USD, converted to AR$ considering 1 USD equivalent to 948 AR$ based on the exchange rate provided by the Central Bank of the Argentine Republic on October 21, 2024.(2) |
||||
Regarding the costs related to the software used for the project's development, the decision was made to use open source platforms, accessing free plans to save on licensing costs. Even so, these tools are presented for informational purposes.
|
Table 43. Analysis of development tool costs |
|
|
Tool |
Subtotal (AR$) |
|
PostgreSQL |
$ |
|
Apache Kafka |
$ |
|
MinIO |
$0 |
|
Docker |
$0 |
|
Kubernetes |
$0 |
|
Spring Framework |
$0 |
|
Total Software Licenses |
$ |
To conclude the cost analysis, a summary of the costs is provided, excluding the salary values detailed above.
|
Table 44. Summary of costs excluding HR |
||||
|
|
Human Capital |
Software and Licenses |
Infrastructure and Hardware |
Total |
|
Initial Cost (AR$)* |
$18 109 247,01 |
$ |
$1 453 511 |
19 562 758,01 |
|
Monthly Fixed Cost (AR$)** |
$ |
$ |
$96 608 |
$96 608 |
|
Note: * Includes all costs related to the first three months of activity, i.e., until the development of the system is complete, excluding its deployment. ** Includes the costs of maintaining the system once it has been developed and deployed in the cloud. |
||||
Risk Analysis
The risks that may arise during the course of the project are described and detailed below, divided into different tables according to their cause. These tables show both the probability and impact of each risk, values that will be used to determine their significance in the matrix presented below.
Technical Risks
|
Table 45. Technical Risks |
|||||
|
ID |
Type |
Risk |
Probability |
Impact |
Cause |
|
1 |
Technical |
The platform's response time does not meet expected response standards |
0,40 |
4 |
Inefficiencies in architecture or lack of optimization in communications |
|
2 |
Technical |
Security vulnerability in services that interact with databases. |
0,7 |
2 |
Lack of proper sanitization and validation of user input |
|
Table 46. Project risks |
|||||
|
ID |
Type |
Risk |
Probability |
Impact |
Cause |
|
3 |
Project |
Dependence on third-party APIs for integration or creation of services that are not available |
0,80 |
3 |
Lack of control over the quality and availability of services used in the system |
|
4 |
Project |
Difficulty in obtaining the technical personnel necessary to carry out the development of the system |
0,3 |
3 |
Very specific subject matter due to the ultimate goal of the system, which focuses on distributed systems |
|
5 |
Project |
Insufficient resources for project development |
0 |
4 |
Lack of investment in human and/or technological resources technology |
|
6 |
Project |
The field of research does not provide useful information on which to base the project. |
0,60 |
2 |
The field of microservices research may be incomplete due to its recent inclusion. |

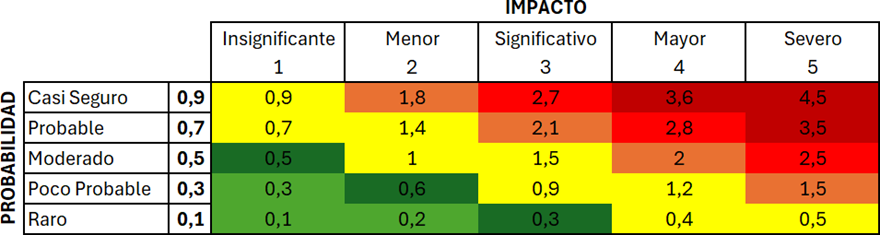

Once the identified project risks have been exposed, we proceed with the aforementioned risk matrix in order to weigh the probabilities of occurrence and their related impacts.
Figure 21. Risk Matrix
Based on the matrix presented, both the tables shown above and the one defined below, referring to the quantitative analysis of risks, were developed.
|
Table 47. Quantitative risk analysis |
|||||
|
Risk |
Probability of Occurrence |
Impact |
Degree of Exposure |
Percentage |
Cumulative Percentage |
|
Dependence on third-party APIs for integration or creation of services that are not available |
0,8 |
3 |
2 |
25,40 |
25,40 |
|
Insufficient resources for project development |
0,45 |
4 |
1,8 |
19,06 |
44,46 |
|
The platform's response time does not meet the expected response standards |
0,40 |
4 |
1,60 |
16,93 |
61,39 |
|
Security vulnerability in services that interact with databases. |
0,70 |
2 |
1,40 |
14,81 |
76,2 |
|
The field of research does not provide useful information on which to base a comparison. |
0,60 |
2 |
1,2 |
12,70 |
88,90 |
|
Difficulty in obtaining the technical personnel necessary to carry out the development of the system |
0,35 |
3 |
1 |
11,10 |
100 |
Once the degree of risk exposure for each risk detected has been presented, it is time to use the Pareto Principle to focus attention on the important and critical aspects, ignoring the more trivial ones. The corresponding graph is shown below.

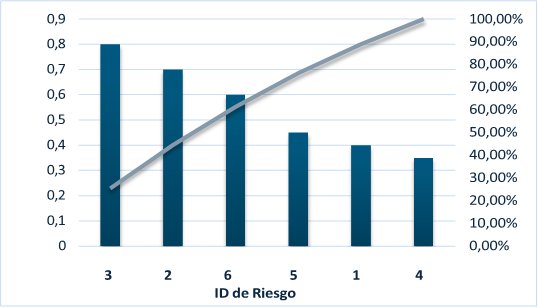

Figure 22. Pareto Principle of Risk Exposure
Once the most threatening risks have been identified using the Pareto Principle, specific contingency plans have been developed to mitigate these threats. The details of these plans are presented below.
|
Table 48. Contingency Plans |
|
|
Risk |
Contingency Plan |
|
Dependence on third-party APIs for integration or creation of services that are unavailable |
Develop minimum viable internal solutions to reduce critical dependence on external APIs. Establish contracts with key suppliers to ensure response times response times and availability, and define monitoring mechanisms to detect failures and act quickly. |
|
Insufficient resources for project development |
Establish a flexible resource allocation plan from the outset, allowing efforts to be redistributed according to project priorities. Propose additional phases or adjustments to the project scope to adapt to the available budget. |
|
The platform's response time does not meet expected response standards |
Conduct a thorough review of the architecture and apply specific optimizations in critical areas. Integrate real-time monitoring solutions to detect performance issues and adjust system capacity. |
|
Security vulnerability in services that interact with databases. |
Implement additional layers of security, such as application-level firewalls and encryption of sensitive data. Conduct regular security-focused code reviews and apply immediate patches for any vulnerabilities discovered. |
CONCLUSIONS
This project demonstrated that combining microservice architectures with low-code approaches is not only possible but also highly beneficial for reducing complexity in the design and development of distributed systems. Through the implementation of a visual and intuitive platform, we were able to offer a solution capable of significantly shortening development times, facilitating component integration, and reducing common errors during manual coding.
One of the main achievements was the construction of a functional environment that allows developers to drag, configure, and relate microservices visually, and then automatically generate the corresponding code. This functionality, supported by technologies such as RDF, SPARQL, and Apache Velocity, is a significant advance in software development automation, ensuring structural consistency without sacrificing flexibility.
The choice of modern, open source tools such as Java with Spring Framework, PostgreSQL, Apache Kafka, MinIO, Docker, and Kubernetes was key to ensuring the scalability, portability, and robustness of the system. In addition, secure authentication practices were implemented with OAuth2 (via Google), along with backup and distribution mechanisms that ensure data integrity and availability.
On the methodological side, the use of Scrum as an agile framework allowed for iterative product evolution, fostering continuous improvement and rapid response to technical obstacles or changes in requirements. This dynamic was essential for adjusting details in real time, improving the functional design of the canvas, and adapting the code generation logic according to the results obtained in each sprint.
The collection of information through the analysis of scientific literature, complemented by observations on social networks used by developers, provided a comprehensive view of the problem to be addressed. This integration of theory and practice facilitated the validation of the real needs of the target user and guided the design of key platform features.
In summary, the developed system fulfills the objective of facilitating the creation of microservice architectures, providing a powerful, accessible, and adaptable tool. Although it is a functional prototype, its structure and design anticipate future evolution with greater possibilities for customization, template expansion, and compatibility with enterprise production environments. The path towards the democratization of distributed development through low-code platforms is thus open and enhanced with this technological proposal.
BIBLIOGRAPHIC REFERENCES
1. DigitalOcean. DigitalOcean Managed Kubernetes. 2024. https://www.digitalocean.com/products/kubernetes
2. Banco Central de la República Argentina (BCRA). Cotizaciones por fecha. 2024. http://www.bcra.gob.ar/PublicacionesEstadisticas/Cotizaciones_por_fecha_2.asp
3. Chaudhary HAA, Ahmed T. Integration of micro-services as components in modeling environments for low code development. ISP RAS. 2021;33(4):19-30. doi:10.15514/ISPRAS-2021-33(4)-2
4. Dhoke P, Lokulwar P. Evaluating the Impact of No-Code/Low-Code Backend Services on API Development and Implementation: A Case Study Approach. In: 14th International Conference on Computing Communication and Networking Technologies (ICCCNT); 2023 Jul 11-13; Chennai, India. Piscataway: IEEE; 2023. p. 1-5. doi:10.1109/ICCCNT56998.2023.10306945
5. Apache Software Foundation. Apache Kafka. 2024. https://kafka.apache.org/
6. IBM. Minio. 2021. https://www.ibm.com/docs/es/cloud-private/3.2.x?topic=private-minio
7. JetBrains. IntelliJ IDEA features. 2024. https://www.jetbrains.com/es-es/idea/features/
8. Kubernetes. ¿Qué es Kubernetes? 2022. https://kubernetes.io/es/docs/concepts/overview/what-is-kubernetes/
9. Lewis J, Fowler M. Microservices: a definition of this new architectural term. 2014. https://martinfowler.com/articles/microservices.html
10. Lopez BM, Garcia JL. Impacto de arquitecturas de microservicios en el desarrollo web [Tesis de maestría]. Madrid: Universidad Politécnica de Madrid; 2019. https://oa.upm.es/55917/1/TESIS_MASTER_BRUNO_MARTIN_LOPEZ.pdf
11. Mozilla Developer Network. HTML5. 2023. https://developer.mozilla.org/es/docs/Glossary/HTML5
12. Postman. What is Postman? 2024. https://www.postman.com/product/what-is-postman/
13. Richardson C. Microservices patterns: With examples in Java. New York: Manning Publications; 2019.
14. Rock Content. What is Bootstrap? 2020. https://rockcontent.com/es/blog/bootstrap/
15. Said M, Ezzati A, Arezki S. Microservice-specific language, a step to the low-code platforms. In: Lecture Notes in Networks and Systems. 2023;637:817-28. doi:10.1007/978-3-031-26384-2_72
16. Spring. Spring Framework. 2024. https://spring.io/projects/spring-framework
17. The Thymeleaf Team. Thymeleaf. 2024. https://www.thymeleaf.org/
18. Trello. Trello Tour. 2023. https://trello.com/es/tour
19. Vincent P, Lijima K, Driver M, Wong J, Natis Y. Gartner magic quadrant for enterprise low-code application platforms. Stamford: Gartner, Inc.; 2019. https://www.gartner.com/en/documents/3956079
20. World Wide Web Consortium. SPARQL 1.1 Query Language. 2013. https://www.w3.org/TR/sparql11-query/
FINANCING
None
CONFLICT OF INTEREST
The authors declare that there is no conflict of interest.
AUTHORSHIP CONTRIBUTION
Conceptualization: Tomás Darquier, Pablo Alejandro Virgolini.
Data curation: Tomás Darquier, Pablo Alejandro Virgolini.
Formal analysis: Tomás Darquier, Pablo Alejandro Virgolini.
Research: Tomás Darquier, Pablo Alejandro Virgolini.
Methodology: Tomás Darquier, Pablo Alejandro Virgolini.
Project management: Tomás Darquier, Pablo Alejandro Virgolini.
Resources: Tomás Darquier, Pablo Alejandro Virgolini.
Software: Tomás Darquier, Pablo Alejandro Virgolini.
Supervision: Tomás Darquier, Pablo Alejandro Virgolini.
Validation: Tomás Darquier, Pablo Alejandro Virgolini.
Visualization: Tomás Darquier, Pablo Alejandro Virgolini.
Writing – original draft: Tomás Darquier, Pablo Alejandro Virgolini.
Writing – review and editing: Tomás Darquier, Pablo Alejandro Virgolini.
